The difference between ac wall mount adapter and dc wall mount adapter

Views: 44     Author: Site Editor     Publish Time: 2023-06-15      Origin: Site

When it comes to choosing the right wall mount adapter for powering electronic devices, it is important to understand the difference and similarities between AC wall mount adapters and DC wall mount adapters. AC is the English abbreviation of alternating current, and DC is the English abbreviation of direct current. AC/DC power supply is a power converter with AC input and DC output. For example, the power adapters of our commonly used mobile phone chargers, notebooks and tablets are all this kind of power supply.


Here is a detailed comparison of these two types of adapters:


1. Current Type

AC wall mount adapters are used to convert AC current into low-voltage DC current suitable for electronic devices. On the other hand, DC wall mount adapters convert high-voltage AC current into DC power supply. Therefore, their main difference lies in the type of current they handle. DC refers to DC power supply, commonly used are 3V, 5V, 6V, 9V, 12V, 24V and other common voltages, AC output voltage has 120V, 220V, 240V and other specifications. Generally speaking, the input voltage of the universal ac adapter is in the range of 100V to 240V. According to the standards of different countries and regions, there are many kinds of ac adapters, such as national standard, Japanese regulation, American regulation, English regulation, Australian regulation and so on.


2. Functionality

AC wall mount adapters are primarily used for household appliances and devices that require AC current. They typically have higher power output and wide compatibility. DC wall mount adapters, on the other hand, are primarily used for electronic devices such as laptops and smartphones that typically require DC power supply. Our common lights, motors and other electricity are AC; DC is mainly used in a variety of electronic instruments, electrolysis, electroplating, DC power drag and so on.


3. Power Conversion Efficiency

Power conversion efficiency is an important factor in evaluating adapter performance. AC wall mount adapters have high power conversion efficiency as they directly convert AC current into the required low-voltage output. DC wall mount adapters involve more steps in the conversion process, resulting in relatively lower power conversion efficiency.


4. Safety

There are also some differences in terms of safety between AC and DC wall mount adapters. AC wall mount adapters usually have more safety features such as overload protection, short circuit protection, and overheating protection. DC wall mount adapters, due to their simpler conversion process, have relatively fewer safety features. Therefore, safety requirements of the devices need to be considered when choosing an adapter.


5. Application Range

AC and DC wall mount adapters are suitable for different devices and applications. AC wall mount adapters are widely used for household appliances, office equipment, and other devices that require AC power supply. DC wall mount adapters are suitable for electronic devices that require DC power supply, such as laptops, cameras, and audio devices.

In conclusion, AC wall mount adapters and DC wall mount adapters have differences in terms of current type, functionality, power conversion efficiency, safety, and application range. When choosing an adapter, it is important to consider these factors and ensure that the adapter provides stable and safe power supply for your specific device needs.


6. Device compatibility

AC wall-mount adapters usually have high device compatibility and are suitable for devices with various voltage and frequency requirements.

DC wall-mount adapters may be relatively narrow in terms of compatibility because different devices may have different voltage and polarity requirements.

Energy loss.

The AC wall-mount adapter will have a certain energy loss in the process of power conversion, which is due to the conversion from AC to DC.

The energy loss of DC wall-mount adapters is relatively low because they directly convert high-voltage alternating current into the required direct current.


7. Size and weight

AC wall-mount adapters are usually large and heavy because they need to include power conversions and other circuit components.

DC wall-mount adapters are usually small and light because they only require DC conversion.


8. Stability and reliability

AC wall-mount adapters are generally more stable than DC wall-mount adapters because AC current varies periodically and helps smooth current waveforms.

DC wall-mount adapters may be more vulnerable to power fluctuations because DC current requires a stable voltage and current supply.

Andar 15W Adapter EU Plug

Andar 15W Adapter EU Plug

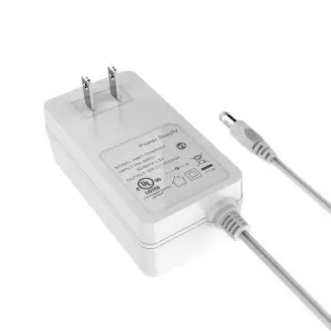

36W Wall-Mount Adapter US PSE Plug
